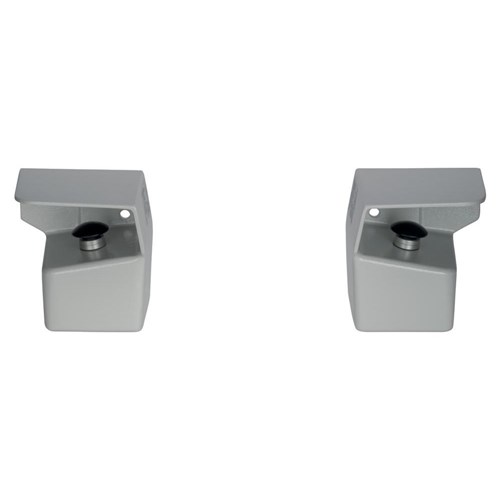

Schmersal 101022851 2-Hand Control Panel

Product Code: 101022851

1

Specifications

Product Type	2-Hand Control Panel
Brand	SCHMERSAL
Series	SEP09.0
Connection Type	M20 x 1.5 mm Screw
No. of N/C Contacts	2
No. of N/O Contacts	2
Rated Insulation Voltage (Ui)	440 V
Contact Configuration	2NO
Rated Current	8 A
Rated Voltage	250 VAC
Mechanical Durability	10000000 Cycles
Actuator Type	Pushbutton
Enclosure Material	Powder-coated
Housing Colour	RAL 7004
Housing Material	Aluminium
Depth	150 mm
Height	160 mm
Weight	3500 g
Width	155 mm
IP Rating	IP54
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN ISO 13850, EN ISO 13851

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet
