Specifications

Product Type	Micro Switch
Brand	Schmersal
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	250 V
Switching Element	Change-over contact with double break with two separated contact bridges
Switching Principle	Snap action with self-cleaning contact
Terminal Type	Screw terminals
Mechanical Durability	10000000 Operations
Thermal Test Current	6A
Actuator Type	Roller plunger 8R
Contact Material	Gold-plated silver
Housing Material	thermosetting resin
IP Rating	IP40
Ambient Temperature	-30 ... +120 °C
Standards and Approvals	ENIEC 60947-5-1

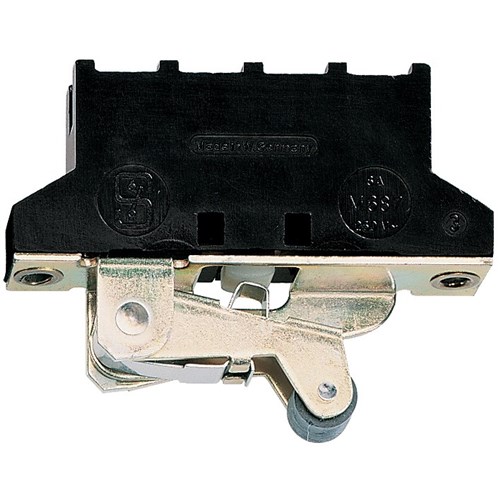

Schmersal 101055282 Micro Switch Thermosetting Resin Gold Plated Silver Contact
