Specifications

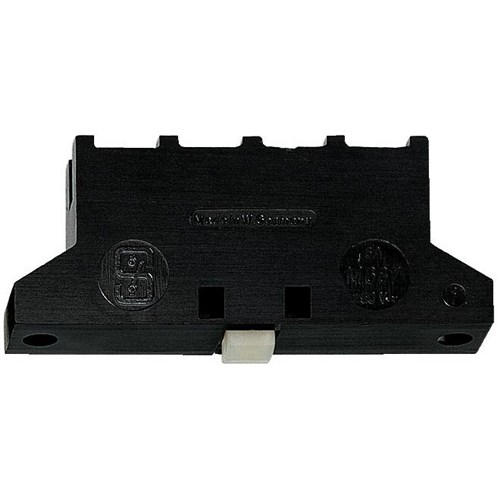

Product Type	Micro Switch
Brand	Schmersal
No. of Auxiliary Contacts NO	1
No. of N/C Contacts	1
No. of N/O Contacts	1
Over Voltage Category	3
Rated Insulation Voltage (Ui)	250 V
Switching Element	Change-over contact with double break with two separated contact bridges
Switching Principle	Snap action with self-cleaning contact
Type of Switching Output	Snap Action
Accuracy	0.02 mm
Rated Current	6 A
Type	Round \| Push button
Terminal Type	Screw terminals
Connector Type	Connector plug M12, 4-pole
Mechanical Durability	10000000 Operations
Thermal Test Current	6A
Actuator Type	Roller plunger 8R
Cable Cross Section	2.5 sq-mm
Cable Entry	Rear
Connecting Capacity	(2) 0.5 mm
Contact Material	Gold-plated silver
Device Construction	Thermoplastic
Enclosure Material	Nickel-plated
Housing Material	thermosetting resin
Material	Aluminium
Mounting Type	Snaps onto standard DIN rail to EN 60715
Pollution Degree	2
IP Rating	IP40
Ambient Temperature	-30 ... +120 °C
Standards and Approvals	EN IEC 60947-5-1
