Specifications

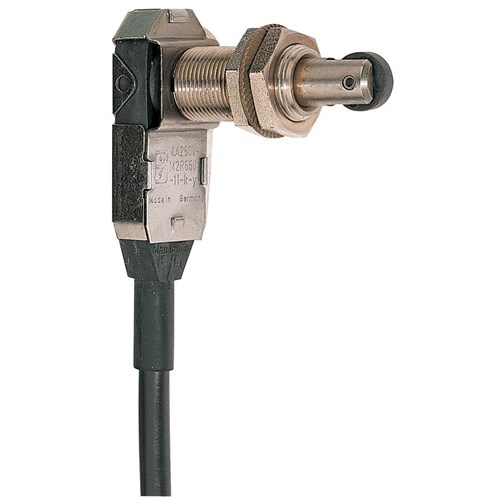

Product Type	Micro Switch
Brand	Schmersal
No. of Auxiliary Contacts NO	1
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	250 V
Switching Element	Change-over contact with single break
Switching Principle	Snap action with self-cleaning contact
Type of Switching Output	Snap Action
Rated Current	4 A
Terminal Type	cable
Mechanical Durability	3000000 Operations
Thermal Test Current	4A
Actuator Type	Roller telescopic plunger 2R
Cable Cross Section	0.75 sq-mm
Contact Material	Gold-plated silver
Housing Material	Synthetic rubber (NBR), cover made of stainless sheet steel
IP Rating	IP65
Ambient Temperature	-30 ... +80 °C
Standards and Approvals	EN IEC 60947-5-1
