Specifications

Product Type	Micro Switch
Brand	Schmersal
Cable Length	0.5 m
Connection Type	M12 Plug, 4 Pole
No. of Auxiliary Contacts NO	1
No. of N/C Contacts	1
No. of N/O Contacts	1
Over Voltage Category	3
Rated Insulation Voltage (Ui)	250 V
Switching Element	Change-over contact with single break
Switching Principle	Snap action with self-cleaning contact
Type of Switching Output	Slow Action
Contact Configuration	NC
Rated Current	0.25 A
Rated Frequency	5 Hz
Rated Power	8.5 W
Rated Voltage	24 VDC
Type	Emergency stop pushbutton with latching - front plate mounting
Terminal Type	H05VV-F
Connector Type	Connector plug M12, 4-pole
Mechanical Durability	1000000 Operations
Thermal Test Current	4A
Actuator Type	Telescopic plunger 2S
Cable Cross Section	2.5 sq-mm
Cable Entry	Without cable gland
Contact Material	Gold-plated silver
Enclosure Material	Nickel-plated
Housing Material	Glass-fibre, reinforced thermoplastic
Material	ABS, chrome-plated
Mounting Type	Flange
Depth	60 mm
Height	103 mm
Weight	15.165 g
Width	87 mm
Humidity	0.95
Operating Temperature	-25 to 70 deg C
IP Rating	IP67
Ambient Temperature	-30 ... +80 °C
Standards and Approvals	EC000030

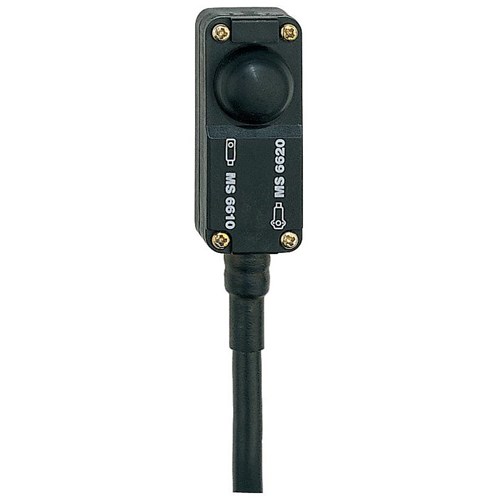

Schmersal 101055456 Micro Switch Plunger NC 87mm W Aluminium Gold Plated Silver Contact 2m L Cable
