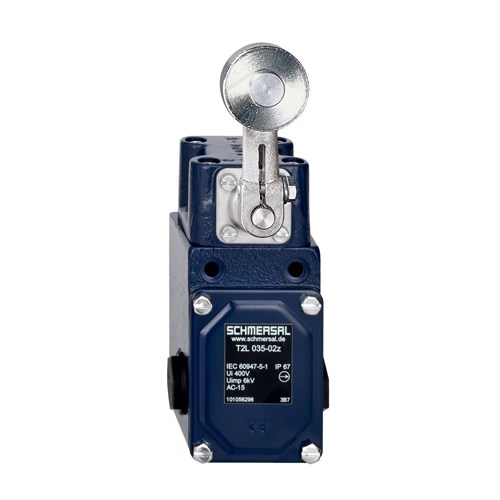

Schmersal 101056298 Position Switch Roller Lever 1NO Grey Cast Iron Galvanized Silver Contact

Product Code: 101056298

1

Specifications

Product Type	Position Switch
Brand	Schmersal
Series	035 roller lever 2L
No. of N/O Contacts	2
Rated Insulation Voltage (Ui)	400 V
Type of Switching Output	Slow Action
Contact Configuration	1NO
Rated Current	4A (AC-15)
Rated Voltage	400V AC (AC-15)
Mechanical Durability	10000000 Operations
Thermal Test Current	10A
Actuator Type	Roller lever
Cable Cross Section	1.5 sq-mm
Connecting Capacity	(2) 2.5 mm
Contact Material	Silver
Enclosure Material	Painted
Housing Material	Grey cast iron, galvanised
Depth	21mm
Height	73mm
Weight	1,725g
Width	36mm
IP Rating	IP67
Ambient Temperature	-30 ... +90 °C
Standards and Approvals	ENIEC 60947-5-1

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

EU Declaration of Conformity

Other Certification

CAD Blocks & Dimensions

Dimensions

Dimensions
