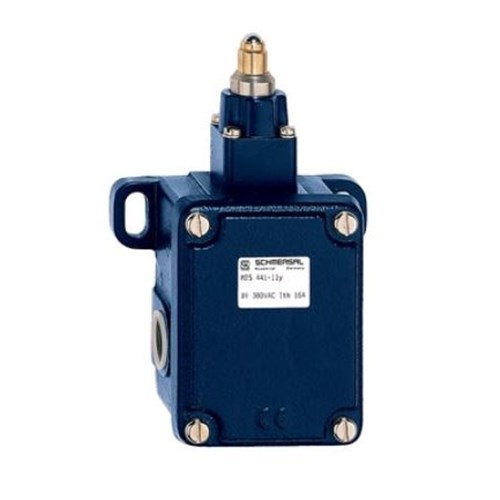

Schmersal 101058561 Position Switch Plunger Cast Iron Galvanized

Product Code: 101058561

1

Specifications

Product Type	Position Switch
Brand	Schmersal
Series	441 telescopic plunger 2S
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	250 V
Rated Current	4A (AC-15)
Rated Voltage	250V AC (AC-15)
Terminal Type	Screw
Mechanical Durability	5000000 Operations
Thermal Test Current	16A
Actuator Type	Plunger
Cable Cross Section	13 AWG
Contact Material	Silver
Housing Material	Grey cast iron, galvanised
Depth	63mm
Height	161mm
Weight	1,365 g
Width	106mm
IP Rating	IP65
Ambient Temperature	-40 ... +200 °C
Standards and Approvals	ENIEC 60947-5-1
