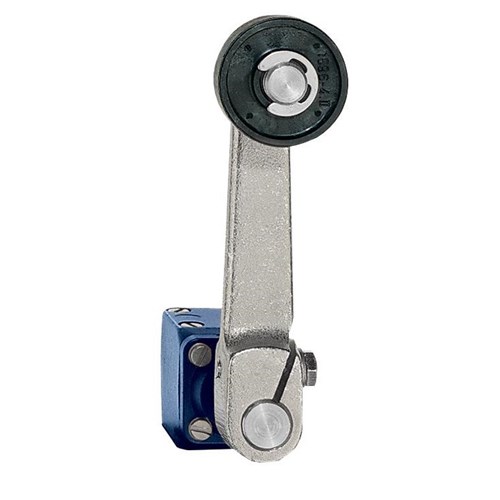

Schmersal 101059618 Medium-Duty Position Switch Roller Lever 1NO-1NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101059618

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Medium-Duty Position Switch
Brand SCHMERSAL
Type of Switching Output Snap Action
Contact Configuration 1NO+1NC
Rated Current 4 A
Rated Voltage 230 VAC
Mechanical Durability 5000000 Operations
Actuator Type Roller Lever
Cable Cross Section 1.5 sq-mm
Connecting Capacity (2) 2.5 mm
Contact Material Silver
Enclosure Material Painted
Housing Material Grey Cast Iron, Galvanized
IP Rating IP65
Standards and Approvals ENIEC 60947-5-1

Documents

IPD Product Catalogue V17
SCHMERSAL Datasheet

Certificate

Other Certification

CAD Blocks & Dimensions
