Specifications

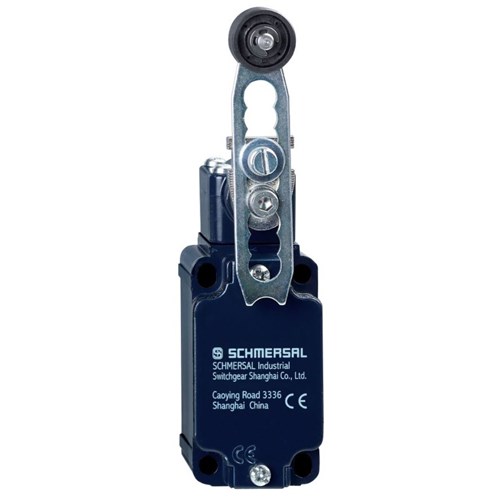

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Series	335
Actuating Speed	2.5 m/s
Actuator Type	Roller Lever
Cable Cross Section	0.75 sq-mm
Contact Configuration	1NO
Contact Material	Silver
Degree of Protection	IP65, IP67
Housing Material	Die Cast Light Alloy
Mechanical Life	30000000 Operations
Number of Auxiliary Contacts	2
Rated Current	4 A
Rated Voltage	230 VAC
Standards and Approvals	BG-GS-ET-15, CCC, cULus, EC000030, ENIEC 60947-5-1, ENISO 13849-1
Switching Type	Slow Action
Weight	282 g
