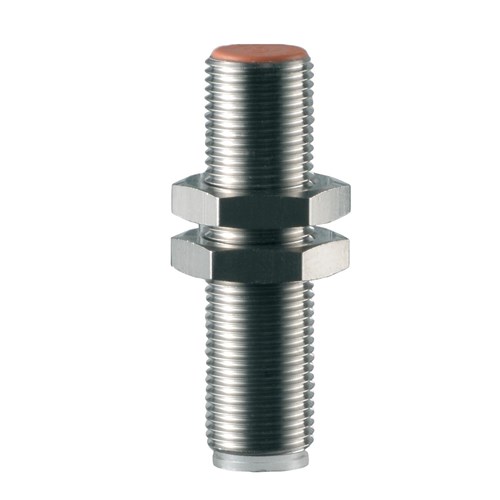

Schmersal 101084532 Inductive Proximity Switch 2mm NO

Product Code: 101084532

1

Specifications

Product Type	IFL 2-12M-10STP
Brand	Schmersal
Series	IFL - M12
Cable Length	2 m
Connection Type	M12 Connector
No. of N/C Contacts	0
No. of N/O Contacts	1
Over Voltage Category	3
Switching Current	200 mA
Switching Voltage	10 to 30 V DC
Type of Actuation	Inductive
Electrical Connection	Connector M12
Rated Current	200 mA
Rated Voltage	10-30 VDC
Switching Distance	2 mm
Terminal Type	Connector M12, 6-pole
Actuator Type	Magnet
Contact Material	Silver
Enclosure Material	Painted
Housing Material	Brass
Material	Brass
Mounting Type	Flush
Depth	44.5 mm
Operating Temperature	-25 to 70 degC
IP Rating	IP67
Standards and Approvals	DIN VDE 0660-208 EN IEC 60947-5-2
