Specifications

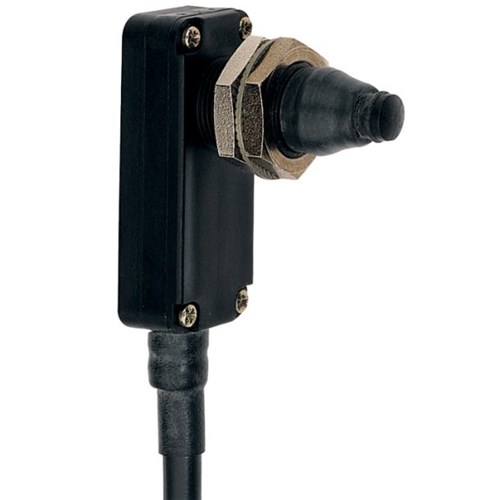

Product Type	Micro Switch
Brand	Schmersal
No. of Auxiliary Contacts NO	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	250 V
Switching Element	Change-over contact with single break
Switching Principle	Snap action with self-cleaning contact
Accuracy	0.05 mm
Rated Current	4 A
Terminal Type	H05VV-F
Mechanical Durability	3000000 Operations
Thermal Test Current	4A
Actuator Type	Telescopic plunger 1S
Connecting Capacity	0.35 mm
Contact Material	Gold-plated silver
Device Construction	Glass Fibre Reinforced Thermoplastic
Housing Material	Glass-fibre, reinforced thermoplastic
IP Rating	IP00
Ambient Temperature	-30 ... +80 °C
Standards and Approvals	CCC
