Specifications

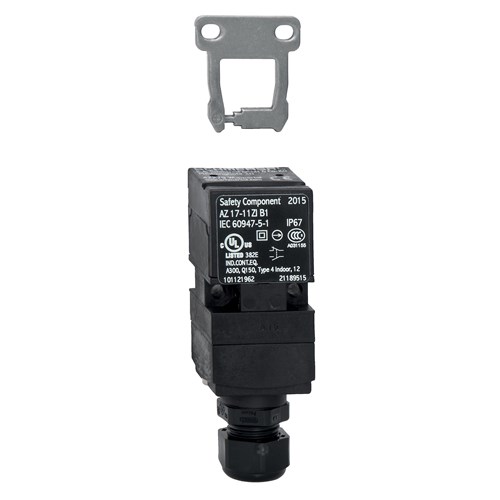

Product Type	Safety Switch with Separate Actuator
Brand	SCHMERSAL
Series	AZ17
No. of N/C Contacts	2
Over Voltage Category	3
Rated Insulation Voltage (Ui)	400 V
Switching Principle	Snap Action
Contact Configuration	1NO+2NC
Rated Current	50 mA
Terminal Type	Screw terminals M20 x 1.5
Mechanical Durability	1000000 Cycles
Actuator Type	Magnet
Cable Entry	M16 x 1.5
Contact Material	Silver
Enclosure Material	Painted
Housing Material	Metal, Die Cast Zinc
Mounting Type	Snap
Depth	30 mm
Height	69 mm
Weight	200 g
Width	45 mm
Size	0.75 sq-mm
Operating Temperature	-30 to 80 deg C
IP Rating	IP67
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1
Enclosure Dimensions	30 mm L x 74.1 mm H
