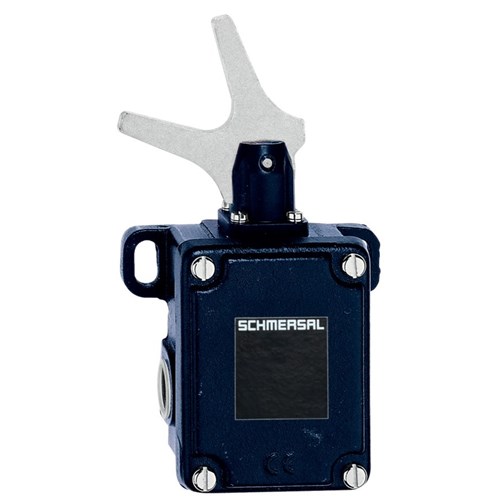

Schmersal 101137935 Position Switch Fork Roller Lever NO-NC Grey Cast Iron Galvanised

Product Code: 101137935

1

Specifications

Product Type	Position Switch
Brand	Schmersal
Series	441 fork lever 2C
No. of Auxiliary Contacts NO	1
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	400 V
Type of Switching Output	Mechanical
Contact Configuration	NO+1NC
Rated Current	4A (AC-15)
Rated Voltage	400V AC (AC-15)
Terminal Type	Screw
Mechanical Durability	5000000 Operations
Thermal Test Current	16A
Actuator Type	Fork Lever
Connecting Capacity	(2) 2.5 mm
Contact Material	AgSnO
Housing Material	Grey cast iron, galvanised
Depth	63mm
Height	194mm
Weight	1,270 g
Width	106mm
IP Rating	IP65
Ambient Temperature	-30 ... +90 °C
Standards and Approvals	INMETRO, CCC

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

EU Declaration of Conformity

Other Certification

CAD Blocks & Dimensions

Dimensions

Dimensions
