Specifications

Product Type	Micro Switch
Brand	Schmersal
No. of Auxiliary Contacts NO	1
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	250 V
Switching Element	Change-over contact with double break with two separated contact bridges (positive break)
Switching Principle	Slow action
Terminal Type	Screw terminals
Mechanical Durability	3000000 Operations
Thermal Test Current	10A
Actuator Type	Roller plunger 80R
Contact Material	Silver
Housing Material	Glass-fibre, reinforced thermoplastic
IP Rating	IP40,IP00
Ambient Temperature	-30 ... +85 °C
Standards and Approvals	CCC, cULus, ENIEC 60947-5-1

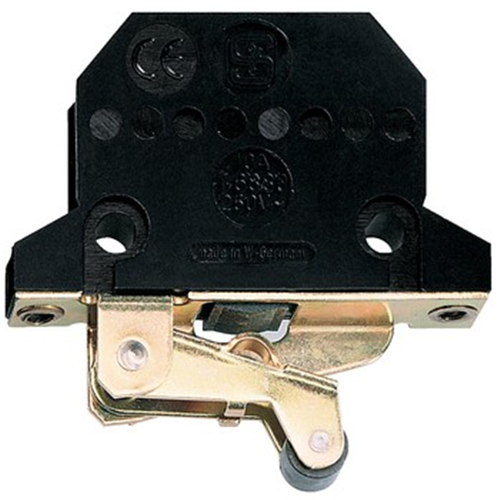

Schmersal 101138615 Micro Switch Glass Fibre Reinforced Thermoplastic Silver Contact
