Specifications

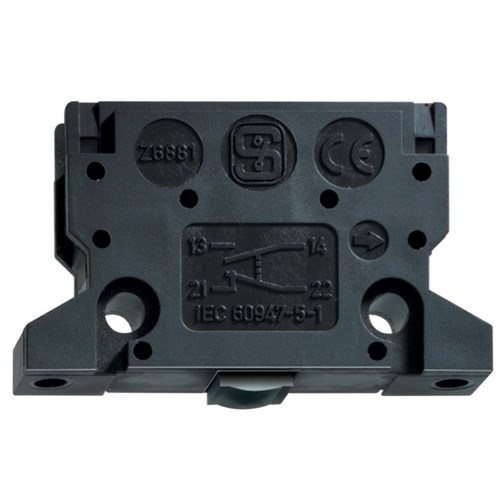

Product Type	Micro Switch
Brand	Schmersal
No. of Auxiliary Contacts NO	1
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	250 V
Switching Element	Change-over contact with double break with two separated contact bridges (positive break)
Switching Principle	Magnet Snap Action Snap action
Accuracy	0.02 mm
Rated Current	10 A
Terminal Type	Screw terminals
Mechanical Durability	1000000 Operations
Thermal Test Current	10A
Actuator Type	Plunger
Connecting Capacity	(2) 1.25 mm
Contact Material	Silver
Device Construction	Glass Fibre Reinforced Thermoplastic
Housing Material	Glass-fibre, reinforced thermoplastic
IP Rating	IP40,IP00
Ambient Temperature	-30 ... +85 °C
Standards and Approvals	EN IEC 60947-5-1
