Specifications

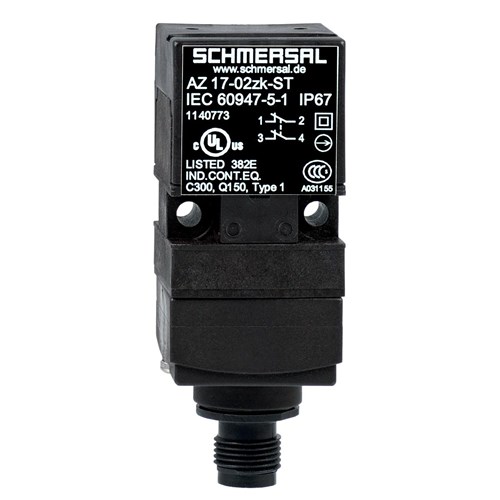

Product Type	Safety Switch with Separate Actuator
Brand	SCHMERSAL
Series	AZ17
No. of N/C Contacts	1
No. of N/O Contacts	1
Over Voltage Category	3
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Slow Action
Contact Configuration	1NO+1NC
Rated Current	1000 A
Terminal Type	Screw terminals M20 x 1.5
Mechanical Durability	30000000 Cycles
Actuator Type	Magnet
Contact Material	Silver
Enclosure Material	Painted
Housing Material	Glass Fibre Reinforced Thermoplastic
Mounting Type	Screw
Depth	30 mm
Height	75 mm
Weight	50 g
Width	30 mm
Size	13 AWG
Operating Temperature	-30 to 80 deg C
IP Rating	IP67
Standards and Approvals	BG-GS-ET-15, EN IEC 60947-5-1, EN ISO 14119
Enclosure Dimensions	30 mm L x 158.5 mm H
