Specifications

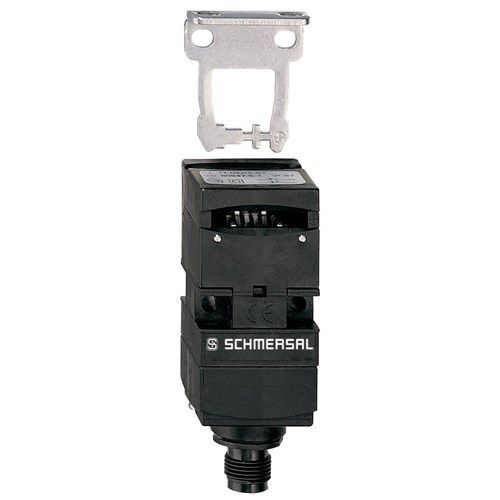

Product Type	Safety Switch with Separate Actuator
Brand	SCHMERSAL
Series	AZ17
No. of N/C Contacts	2
Rated Insulation Voltage (Ui)	250 V
Switching Principle	Slow Action, Positive Break NC Contact
Contact Configuration	2NC
Rated Current	4 A
Rated Voltage	230 VAC
Terminal Type	Connector plug M12, 4-pole, (A-coding)
Mechanical Durability	1000000 Cycles
Contact Material	Silver
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mounting Type	Screw
Depth	30 mm
Height	85 mm
Weight	115 g
Width	30 mm
Operating Temperature	-30 to 80 deg C
IP Rating	IP67
Standards and Approvals	cULus, EC002592, EN IEC 60947-5-1, EN ISO 13849-1, EN ISO 14119, IFA
Enclosure Dimensions	30 mm L x 30 mm W x 85 mm H
