Specifications

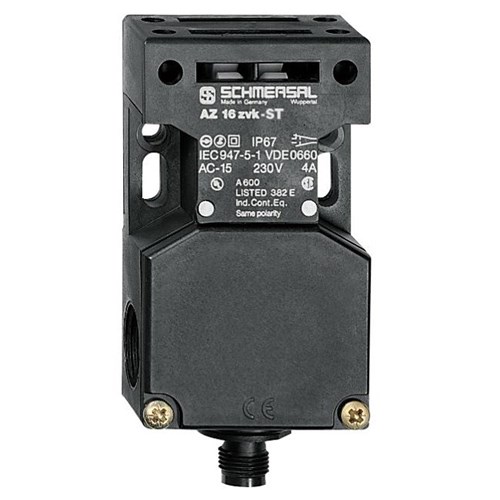

Product Type	Safety Switch with Separate Actuator
Brand	SCHMERSAL
Series	AZ 16
No. of N/C Contacts	1
No. of N/O Contacts	1
Over Voltage Category	3
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Slow Action
Contact Configuration	NC
Rated Current	1000 A
Terminal Type	Screw terminals M20 x 1.5
Mechanical Durability	10000000 Cycles
Actuator Type	H65 Roller Lever
Cable Entry	3 x M16 x 1.5
Contact Material	Silver
Enclosure Material	Painted
Housing Material	Glass Fibre Reinforced Thermoplastic
Depth	30 mm
Height	90 mm
Weight	2140 g
Width	52 mm
Size	0.14 sq-mm
Operating Temperature	-25 to 70 deg C
IP Rating	IP65
Standards and Approvals	EN IEC 60947-5-1, EN IEC 60947-5-5, EN ISO 13850
Enclosure Dimensions	46.5 mm L x 112 mm H
