Specifications

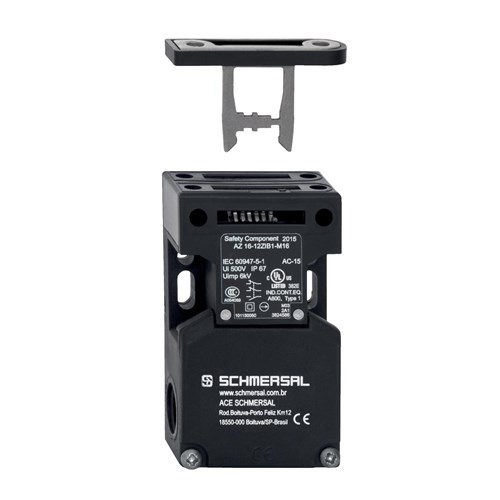

Product Type	Safety Switch with Separate Actuator
Brand	SCHMERSAL
Series	AZ16
Action	Slow Action, Positive Break NC Contact
Actuating Speed	2 m/s
Actuator Type	Straight, Rigid
Contact Configuration	3NC
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	1000000 Cycles
Mounting Type	Screw
Operational Temperature	-30 to 80 deg C
Rated Current	4 A
Rated Frequency	4000/h
Rated Insulation Voltage	500 V
Rated Voltage	230 VAC
Sensor Size	30 mm L x 52 mm W x 90 mm H
Standards and Approvals	cULus, EC002592, EN IEC 60947-5-1, EN ISO 13849-1, EN ISO 14119
Weight	150 g
