Specifications

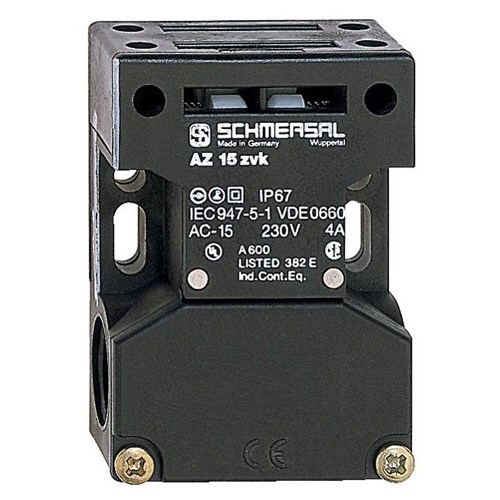

Product Type	Safety Switch with Separate Actuator
Brand	Schmersal
Series	AZ 15
No. of N/C Contacts	1
Over Voltage Category	3
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Slow Action
Contact Configuration	1NO+1NC
Rated Current	4 A
Rated Voltage	230 V AC / 24 V DC
Terminal Type	Screw terminals
Mechanical Durability	1000000 Cycles
Actuator Type	Roller Lever
Contact Material	Silver
Housing Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Depth	30 mm
Height	75 mm
Weight	95 g
Width	52 mm
Size	0.34 sq-mm
Operating Temperature	-30 to 80 °C
IP Rating	IP67
Standards and Approvals	EN IEC 61496-1/CLC/TS 61496-2
Enclosure Dimensions	44 mm L x 25 mm H
