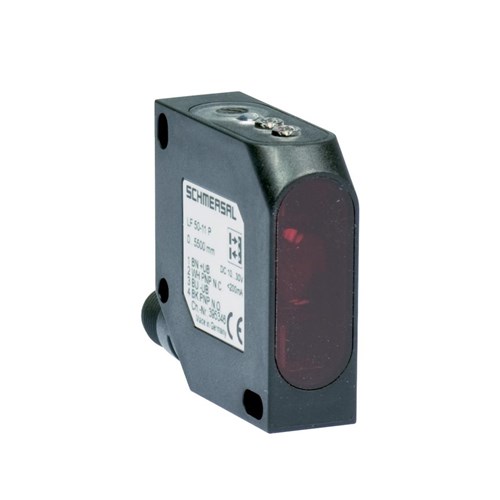

Schmersal 101151758 Reflection Light Barrier

Product Code: 101151758

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Reflection Light Barrier
Brand Schmersal
Series LF 50
Cable Length 100 m
Plug Type M12, 4-pole
Rated Current 200 mA
Rated Frequency 2500 Hz
Rated Voltage 10-30 VDC
Supply Voltage 10 to 30 V DC
Terminal Type M12 Connector Plug, 4 Pole
Housing Material Impact-Proof ABS
No. of Beams 1
Sensor Distance 5500 mm
Depth 17 mm
Height 63.5 mm
Weight 32 g
Width 50 mm
Operating Temperature -20 to 45 °C
IP Rating IP67

Documents

IPD Product Catalogue V17
SCHMERSAL Datasheet

CAD Blocks & Dimensions
