Specifications

Product Type	Position Switch
Brand	Schmersal
Series	471 roller lever A
No. of Auxiliary Contacts NO	1
No. of N/C Contacts	6
Rated Insulation Voltage (Ui)	500 V
Type of Switching Output	Magnet Snap Action, Electromagnetic Reset
Contact Configuration	1NO+1NC
Rated Current	10A (AC-15)
Rated Voltage	230V AC (AC-15)
Terminal Type	Screw
Mechanical Durability	30000000 Operations
Thermal Test Current	25A

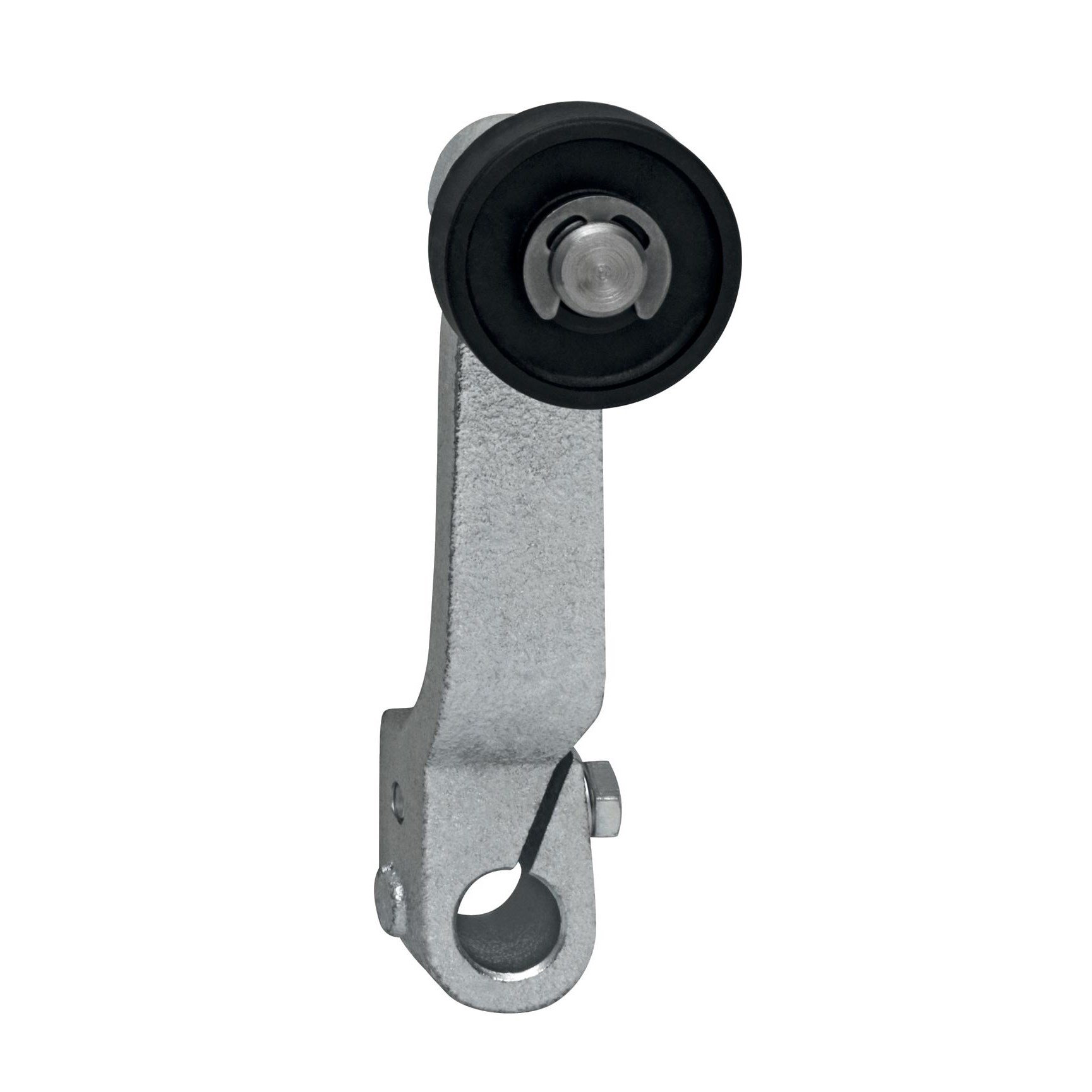

Actuator Type	Roller lever
Cable Cross Section	(2) 0.75 sq-mm
Contact Material	Silver
Housing Material	Grey cast iron, galvanised
Depth	190 mm
Height	143mm
Weight	4,615 g
Width	194mm
IP Rating	IP65
Ambient Temperature	-40 ... +90 °C
Standards and Approvals	BG-GS-ET-15, ENIEC 60947-5-1
