Specifications

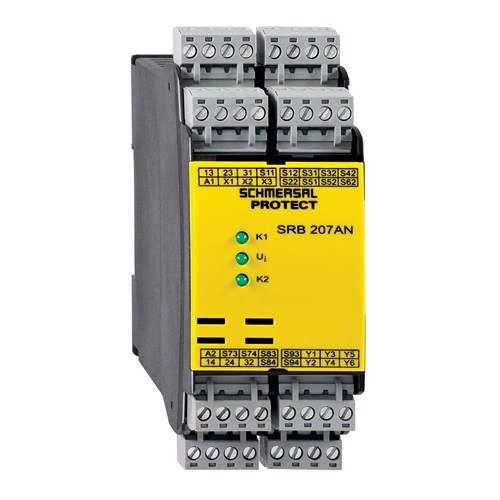

Product Type	Safety Relay Module
Brand	Schmersal
Series	SRB207AN
Switching Current	8 A
Switching Voltage	250 V AC
Rated Power	3 W
Rated Voltage	24 VDC
Supply Voltage	24 V AC, 24 V DC
Housing Material	Glass-fibre reinforced thermoplastic, ventilated
Depth	121 mm
Height	100 mm
Weight	439 g
Width	45 mm
Operating Temperature	-25 to 45 °C
IP Rating	IP40, IP54, IP20
Auxiliary Relay Outputs	1
Safe Relay Outputs, Stop 1	0
Auxiliary Semiconductor Outputs	6
Monitoring Circuit	Yes
Safe Relay Outputs, Stop 0	2
Safety Category	3
Performance Level	PL e
Safety Integrity Level	SIL 3
