Specifications

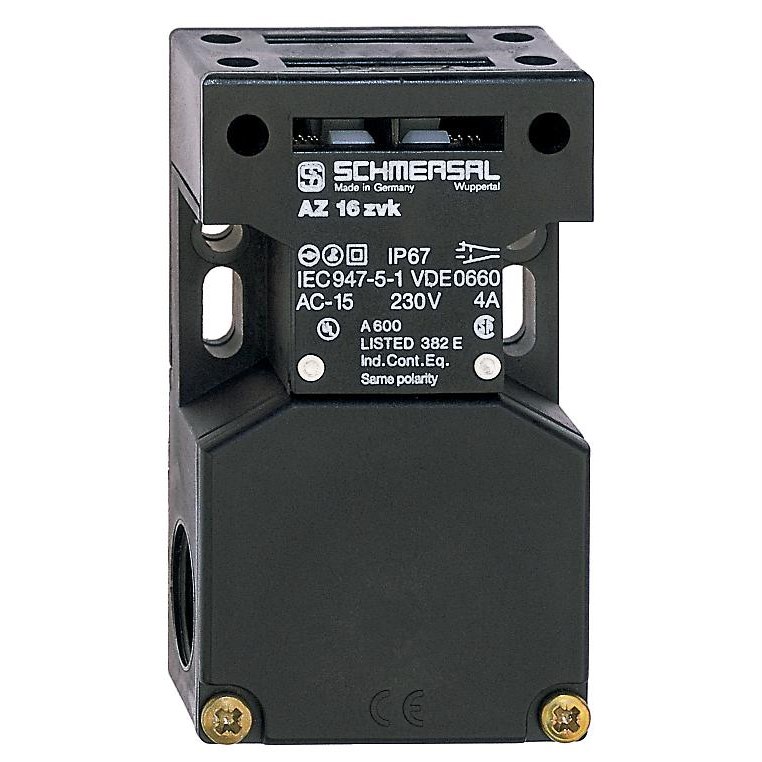

Product Type	Safety Switch with Separate Actuator
Brand	SCHMERSAL
Series	AZ 16
No. of N/C Contacts	2
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Slow Action, Positive Break NC Contact
Contact Configuration	NC
Rated Current	1000 A
Rated Voltage	230 V AC / 24 V DC
Terminal Type	Screw terminals M20 x 1.5
Mechanical Durability	1000000 Cycles
Actuator Type	J300 Rod Lever
Cable Entry	3 x M16 x 1.5
Contact Material	Silver
Housing Material	Aluminium
Depth	30 mm
Height	90 mm
Weight	80 g
Width	52 mm
Operating Temperature	-30 to 70 deg C
IP Rating	IP20
Standards and Approvals	EN 81
Enclosure Dimensions	30 mm L x 118.5 mm H
