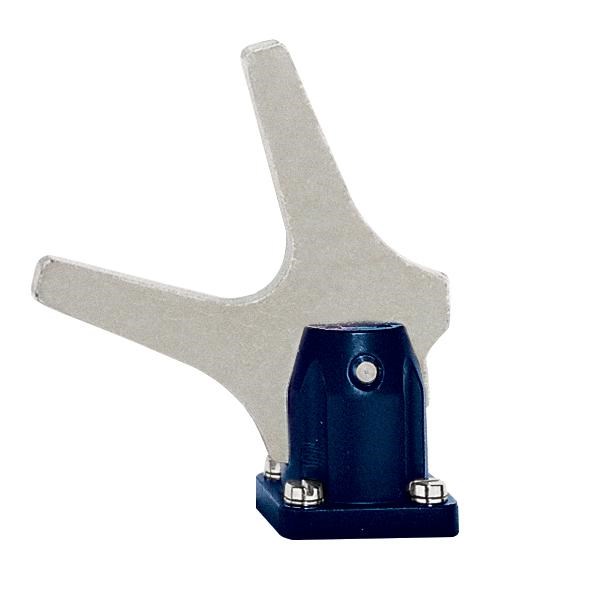

Schmersal 101171395 Medium-Duty Position Switch NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101171395

1

Specifications

Product Type	Position Switch
Brand	Schmersal
Series	452
No. of N/C Contacts	2
Rated Insulation Voltage (Ui)	400 V
Type of Switching Output	Slow Action
Contact Configuration	NC
Rated Current	4A (AC-15)
Rated Voltage	400V AC (AC-15)
Terminal Type	Screw
Mechanical Durability	10000000 Operations
Thermal Test Current	16A
Connecting Capacity	(2) 6 mm
Contact Material	Silver
Housing Material	Grey cast iron, galvanised
Depth	64mm
Height	222mm
Weight	1,685 g
Width	118mm
IP Rating	IP65
Ambient Temperature	-40 ... +90 °C
Standards and Approvals	CCC, EC000030, ENIEC 60947-5-1

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

Other Certification

CAD Blocks & Dimensions

Dimensions

Dimensions
