Specifications

Product Type	Safety Switch with Separate Actuator
Brand	SCHMERSAL
Series	AZ 17
No. of N/C Contacts	2
Rated Insulation Voltage (Ui)	250 V
Switching Principle	Slow Action, Positive Break NC Contact
Contact Configuration	NC
Rated Current	1000 A
Rated Voltage	230 V AC / 24 V DC
Terminal Type	Pre-wired cable
Mechanical Durability	1000000 Cycles
Cable Entry	Rear
Contact Material	Silver
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Depth	30 mm
Height	65 mm
Weight	65 g
Width	30 mm
Operating Temperature	-30 to 80 deg C
IP Rating	IP67
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1
Enclosure Dimensions	30 mm L x 30 mm W x 65 mm H

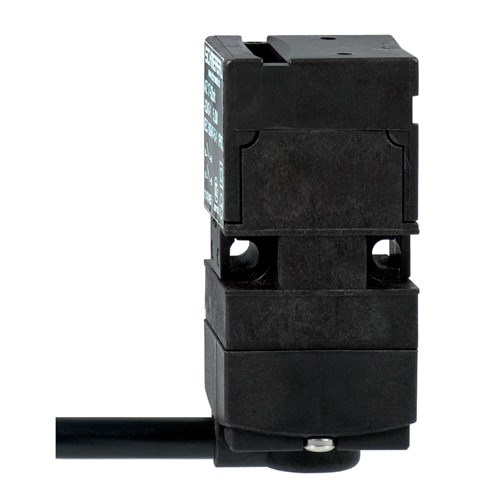

Schmersal 101184150 Safety Switch with Separate Actuator NC
