Specifications

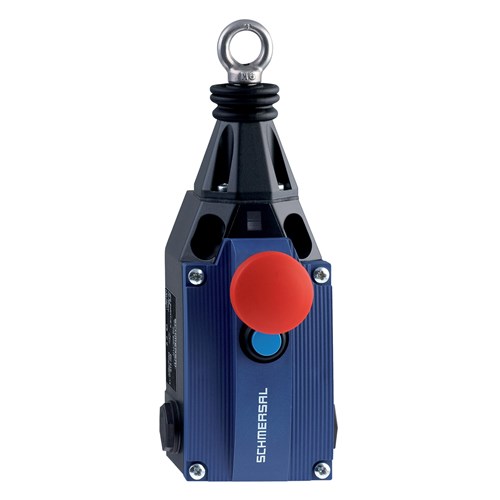

Product Type	Pull-Wire Emergency Stop Switch
Brand	SCHMERSAL
Series	ZQ
Action	Snap Action
Cable Length	75 m
Contact Material	Silver
Degree of Protection	IP65
Housing Material	Metal, Die Cast Zinc
Humidity	95%
Mechanical Life	1000000 Cycle
Operational Temperature	-25 to 70 deg C
Rated Current	6 A
Rated Insulation Voltage	500 V
Sensor Size	97.2 mm L x 71.5 mm W x 220.3 mm H
Standards and Approvals	EN ISO 13850, EN IEC 60947-5-1, EN IEC 60947-5-5, EN ISO 13849-1
