Specifications

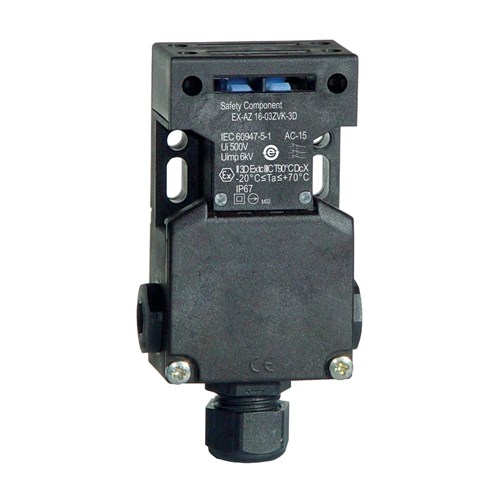

Product Type	Safety Switch with Separate Actuator
Brand	SCHMERSAL
Series	Ex-AZ16
No. of N/C Contacts	2
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Slow Action
Contact Configuration	1NO+1NC
Rated Current	2.5 A
Rated Voltage	230 VAC
Mechanical Durability	1000000 Cycles
Contact Material	Silver
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Weight	145 g
Operating Temperature	-20 to 70 deg C
IP Rating	IP67
Standards and Approvals	cULus, EC002592, EN IEC 60947-5-1, EN ISO 13849-1, EN ISO 14119
Enclosure Dimensions	30 mm L x 52 mm W x 90 mm H
