Specifications

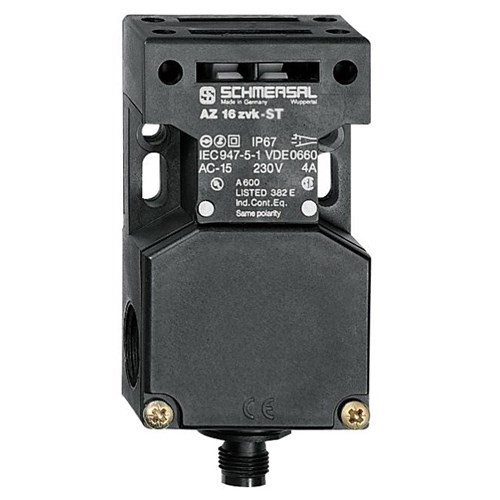

Product Type	Safety Switch with Separate Actuator
Brand	SCHMERSAL
Series	AZ16
No. of N/C Contacts	2
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Slow Action, Positive Break NC Contact
Contact Configuration	1NO+2NC
Rated Current	4 A
Rated Voltage	230 VAC
Terminal Type	Connector plug M12, 8-pole, (A-coding)
Mechanical Durability	1000000 Cycles
Cable Entry	3 x M16 x 1.5
Contact Material	Silver
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mounting Type	Screw
Depth	30 mm
Height	90 mm
Weight	125 g
Width	52 mm
Operating Temperature	-30 to 80 deg C
IP Rating	IP67
Standards and Approvals	cULus, EC002592, EN IEC 60947-5-1, EN ISO 13849-1, EN ISO 14119
Enclosure Dimensions	30 mm L x 52 mm W x 90 mm H
