Specifications

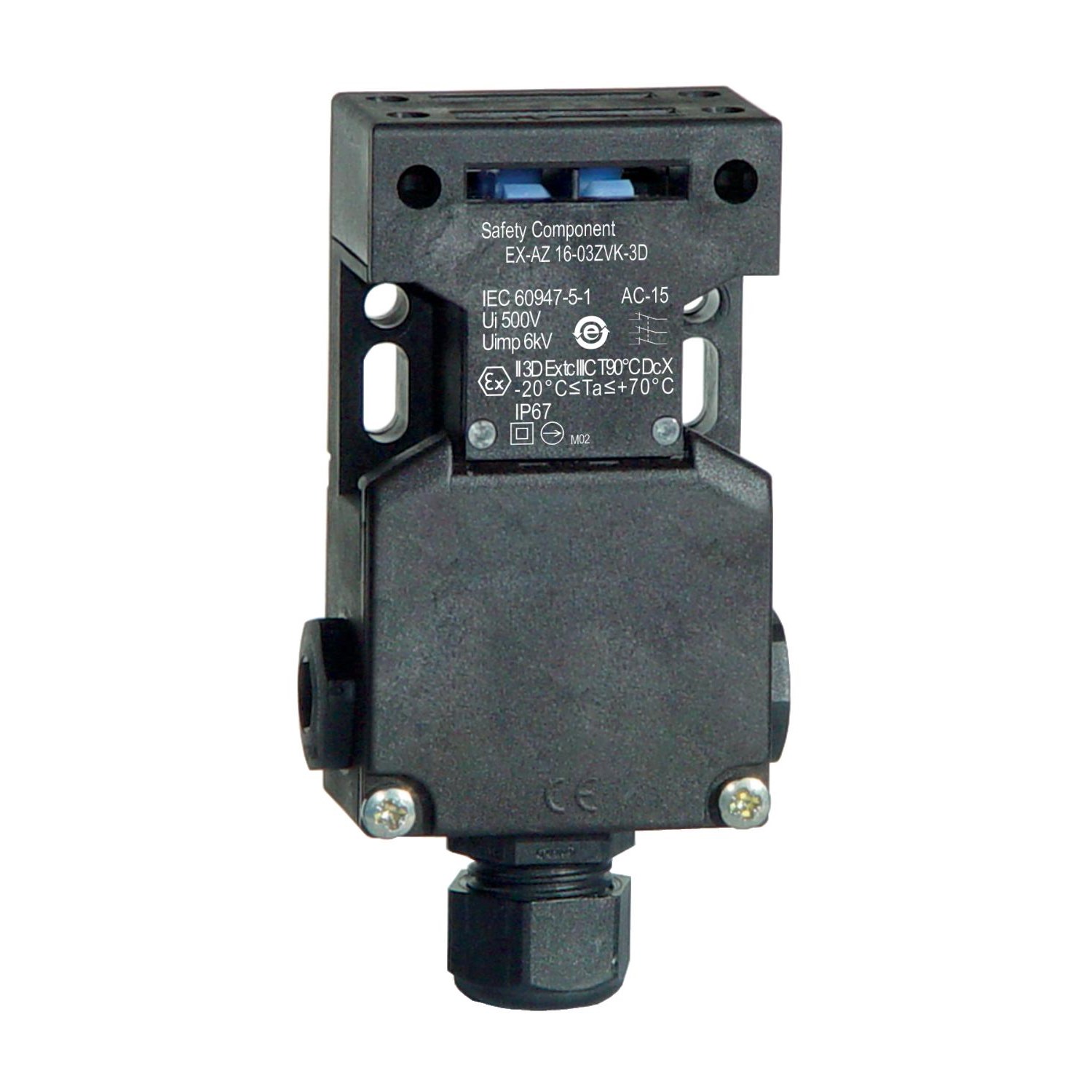

Product Type	Safety Switch with Separate Actuator (Ex-certified)
Brand	Schmersal
Series	EX-AZ 16
No. of N/C Contacts	3
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Slow Action
Contact Configuration	NC
Rated Current	2.5 A
Rated Voltage	230 VAC
Terminal Type	Screw connection M16x1.5
Mechanical Durability	1000000 Cycles
Contact Material	Silver
Housing Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Depth	30 mm
Height	90 mm
Weight	195 g
Width	52 mm
Operating Temperature	-20 to 70 °C
IP Rating	IP67
Standards and Approvals	cULus, EC002592, EN IEC 60947-5-1, EN ISO 13849-1, EN ISO 14119
Enclosure Dimensions	30 mm L x 52 mm W x 90 mm H
