Specifications

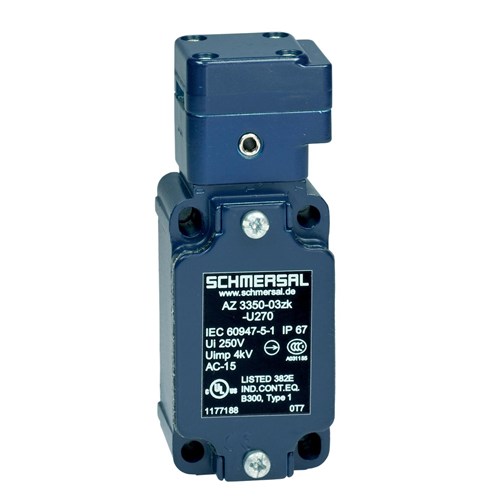

Product Type	Safety Switch with Separate Actuator
Brand	SCHMERSAL
Series	AZ3350
Action	Slow Action
Actuating Speed	0.2 m/s
Contact Configuration	NC
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Aluminium
Mechanical Life	1000000 Cycles
Mounting Type	Screw
Operational Temperature	-30 to 90 deg C
Rated Current	4 A
Rated Frequency	1200/h
Rated Insulation Voltage	250 V
Rated Voltage	250 VAC
Sensor Size	38 mm L x 40.5 mm W x 114 mm H
Standards and Approvals	cULus, EC002592, EN IEC 60947-5-1, EN ISO 13849-1, EN ISO 14119
Weight	245 g
