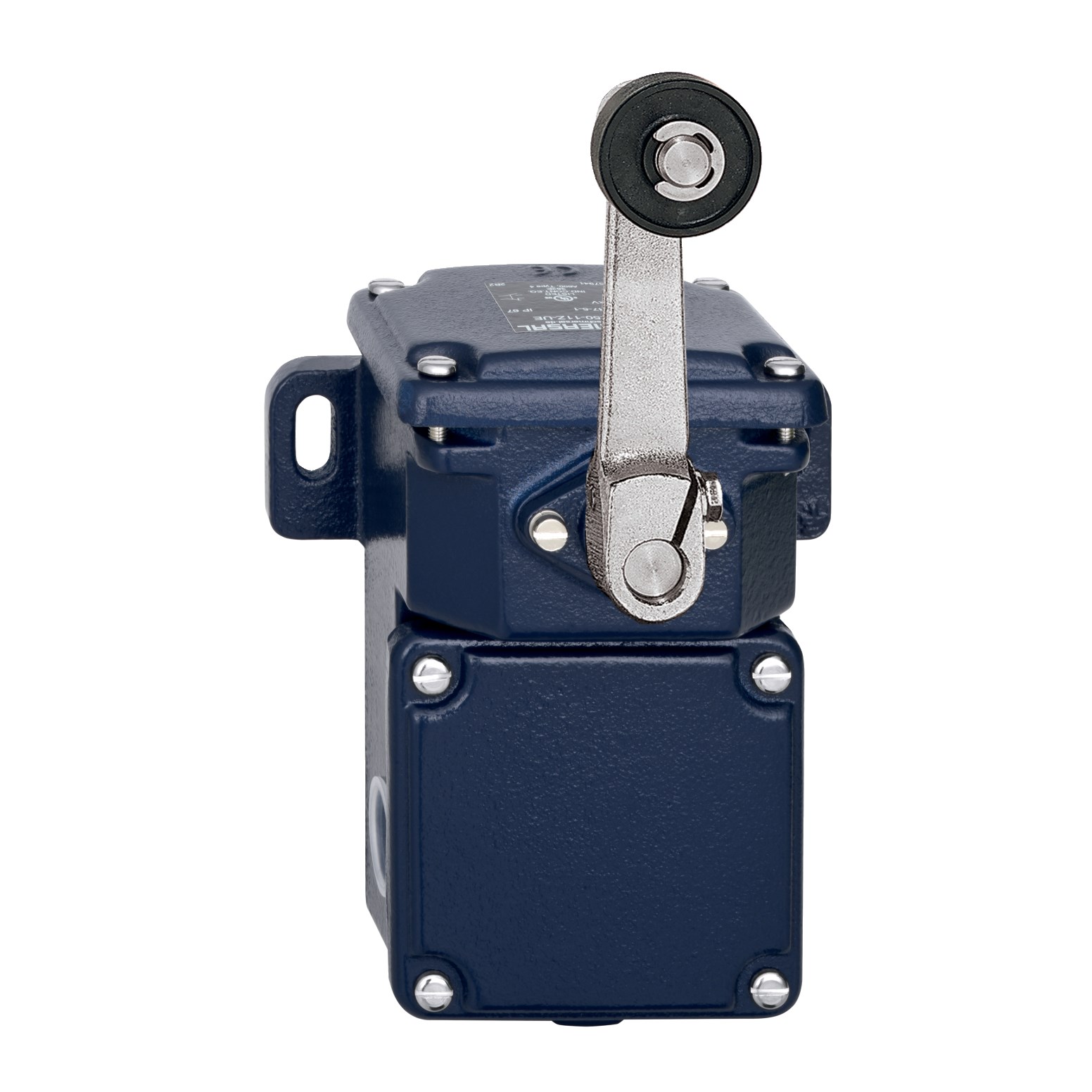

Schmersal 103002239 Position Switch

Product Code: 103002239

1

Specifications

Product Type	Position Switch
Brand	Schmersal
Series	250 roller lever D
No. of N/C Contacts	2
No. of N/O Contacts	2
Rated Insulation Voltage (Ui)	400 V
Rated Current	4A (AC-15)
Rated Voltage	400V AC (AC-15)
Terminal Type	Screw
Thermal Test Current	16A
Actuator Type	Roller lever
Contact Material	Metal, CuZn, gold-plated
Housing Material	Grey cast iron, galvanised
Depth	125mm
Height	257mm
Weight	3,000 g
Width	146mm
IP Rating	IP67
Ambient Temperature	-40 ... +90 °C
