Specifications

Product Type	Position Switch
Brand	Schmersal
Series	015 offset roller lever K
No. of N/C Contacts	2
Rated Insulation Voltage (Ui)	400 V
Type of Switching Output	Slow Action
Contact Configuration	1NC
Rated Current	4 A
Rated Voltage	400 VAC
Terminal Type	Screw
Mechanical Durability	5000000 Operations
Thermal Test Current	10A
Actuator Type	Offset Roller Lever
Contact Material	Silver
Housing Material	Light-alloy diecast, paint finish
Depth	43mm
Height	113mm
Weight	300 g
Width	67mm
IP Rating	IP65
Ambient Temperature	-40 ... +90 °C
Standards and Approvals	CCC, cULus, EC000030, ENIEC 60947-5-1

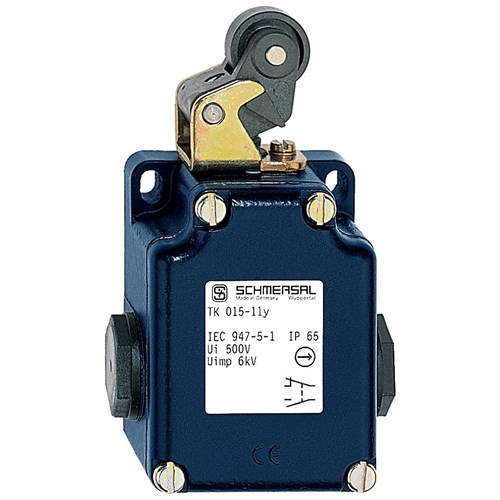

Schmersal 131054782 Position Switch 1NC Die Cast Light Alloy Painted Silver Contact
