Specifications

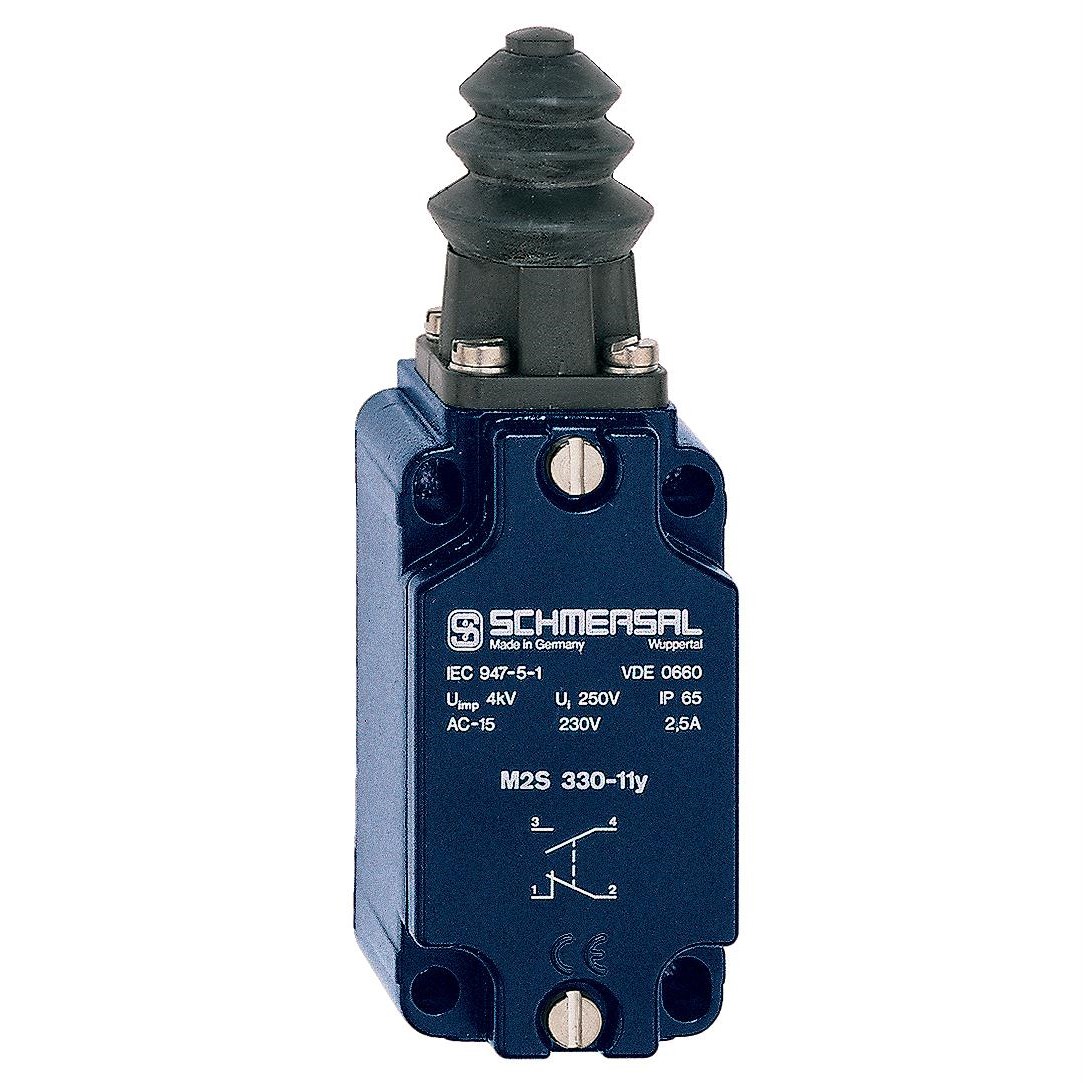

Product Type	Position Switch
Brand	Schmersal
Series	M 330 plunger S
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	250 VAC
Type of Switching Output	Mechanical
Rated Current	2.5A (AC-15)
Rated Voltage	230V AC (AC-15)
Thermal Test Current	6A
Actuator Type	Plunger
Cable Cross Section	13 AWG
Contact Material	Silver
Housing Material	Light-alloy diecast, paint finish
Depth	40mm
Height	120.5 mm
Weight	225 g
Width	40mm
IP Rating	IP65
Ambient Temperature	-40 ... +90 °C
Standards and Approvals	ENISO 13849-1
