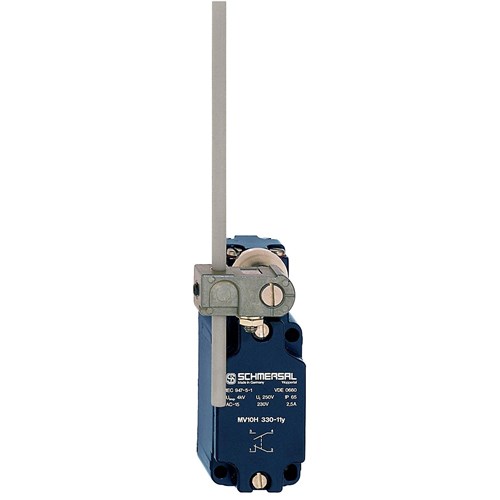

Schmersal 131168057 Position Switch Rod Lever 1NO-1NC Die Cast Light Alloy Painted Silver Contact

Product Code: 131168057

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Position Switch
Brand Schmersal
No. of N/C Contacts 1
No. of N/O Contacts 1
Rated Current 6 A
Rated Voltage 500 V
Terminal Type Screw terminals M20 x 1.5
Actuator Type Rod lever
Housing Material Light-alloy diecast, painted
Material Silver (Contact)
Depth 40 mm
Height 276 mm
Weight 0.388 kg
Width 40 mm
IP Rating IP65
Ambient Temperatures -30 ... +90 °C

Documents

IPD Product Catalogue V17
Instructions
SCHMERSAL Datasheet

Certificate

Certificate of Compliance
Other Certification

CAD Blocks & Dimensions
