Specifications

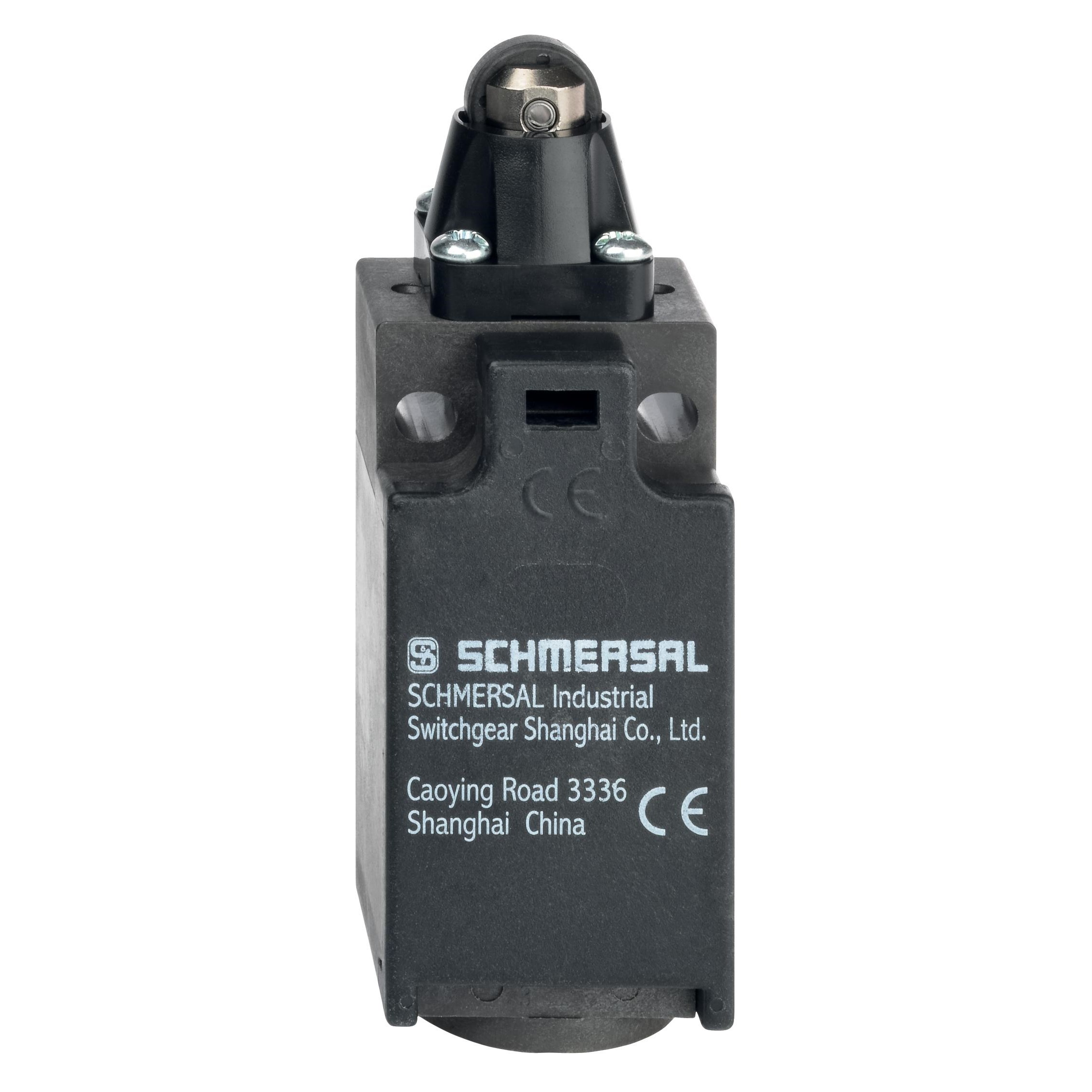

Product Type	Position switch
Brand	Schmersal
Series	ZR 236
No. of N/C Contacts	2
No. of N/O Contacts	0
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Snap Action
Contact Configuration	NC
Rated Current	4 A, 1 A
Rated Voltage	230 V AC, 24 V DC
Terminal Type	Screw terminals
Mechanical Durability	20000000 Cycles
Actuator Type	Roller plunger, Type C (EN 50047)
Contact Material	Silver
Housing Material	Plastic, glass-fibre-reinforced
Depth	30 mm
Height	84 mm
Weight	57 g
Width	30 mm
Operating Temperature	-40 to 80 °C
IP Rating	IP65, IP67
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1
Enclosure Dimensions	30 mm L x 30 mm W x 84 mm H
