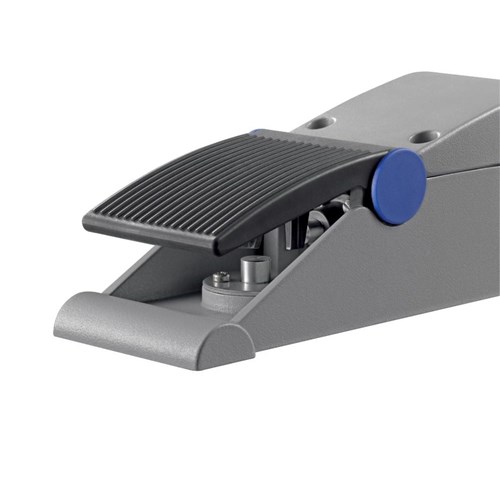

Schmersal 151181523 Foot Switch NC 230VAC 24VDC 4A 1A

Product Code: 151181523

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Foot Switch
Brand Schmersal
Series F 232
No. of N/C Contacts 2
Plug Type 1 x M20 x 1,5
Type of Switching Output Slow Action
Contact Configuration NC
Rated Current 4A 1A
Rated Voltage 230VAC/24VDC
Mechanical Durability 1000000 Operations
Actuator Type single-pedal
Cable Cross Section (1) 2.5 sq-mm
Enclosure Material Powder-coated
Housing Colour RAL 9006 (White aluminum)
Housing Material Aluminium
Depth 255 mm
Height 84 mm
Weight 1,165 g
Width 82 mm
IP Rating IP65
Ambient Temperature -25 ... +70 °C
Standards and Approvals ENIEC 60947-5-1

Documents

IPD Product Catalogue V17
Instructions
SCHMERSAL Datasheet

Certificate

Certificate of Compliance
EU Declaration of Conformity
Other Certification

CAD Blocks & Dimensions
