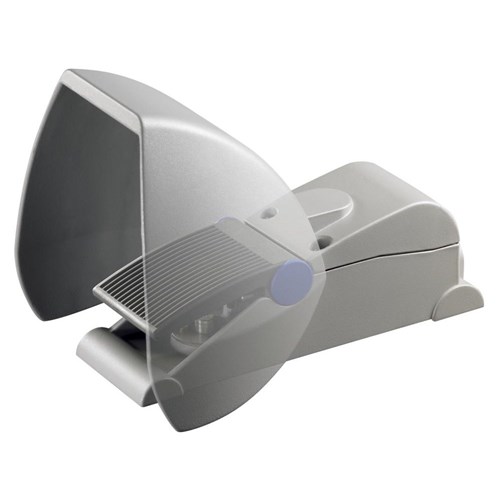

Schmersal 151181532 Foot Switch 1NO-1NC 230VAC 24VDC 4A 1A

Product Code: 151181532

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Foot switch
Brand Schmersal
Series 232
No. of N/C Contacts 2
No. of N/O Contacts 2
Type of Switching Output Slow Action
Contact Configuration 1NO+1NC
Rated Current 4 A AC, 1 A DC
Rated Voltage 230 V AC, 24 V DC
Mechanical Durability 1000000 Operations
Actuator Type Pedal
Cable Cross Section (1) 2.5 sq-mm
Enclosure Material Powder-coated
Housing Colour RAL 9006 (White aluminum)
Housing Material Aluminium
Depth 274 mm
Height 189 mm
Weight 2051 g
Width 170 mm
Operating Temperature -25 to 70 °C
IP Rating IP65
Standards and Approvals ENIEC 60947-5-1

Documents

IPD Product Catalogue V17
Instructions
SCHMERSAL Datasheet

Certificate

Certificate of Compliance
EU Declaration of Conformity
Other Certification

CAD Blocks & Dimensions
