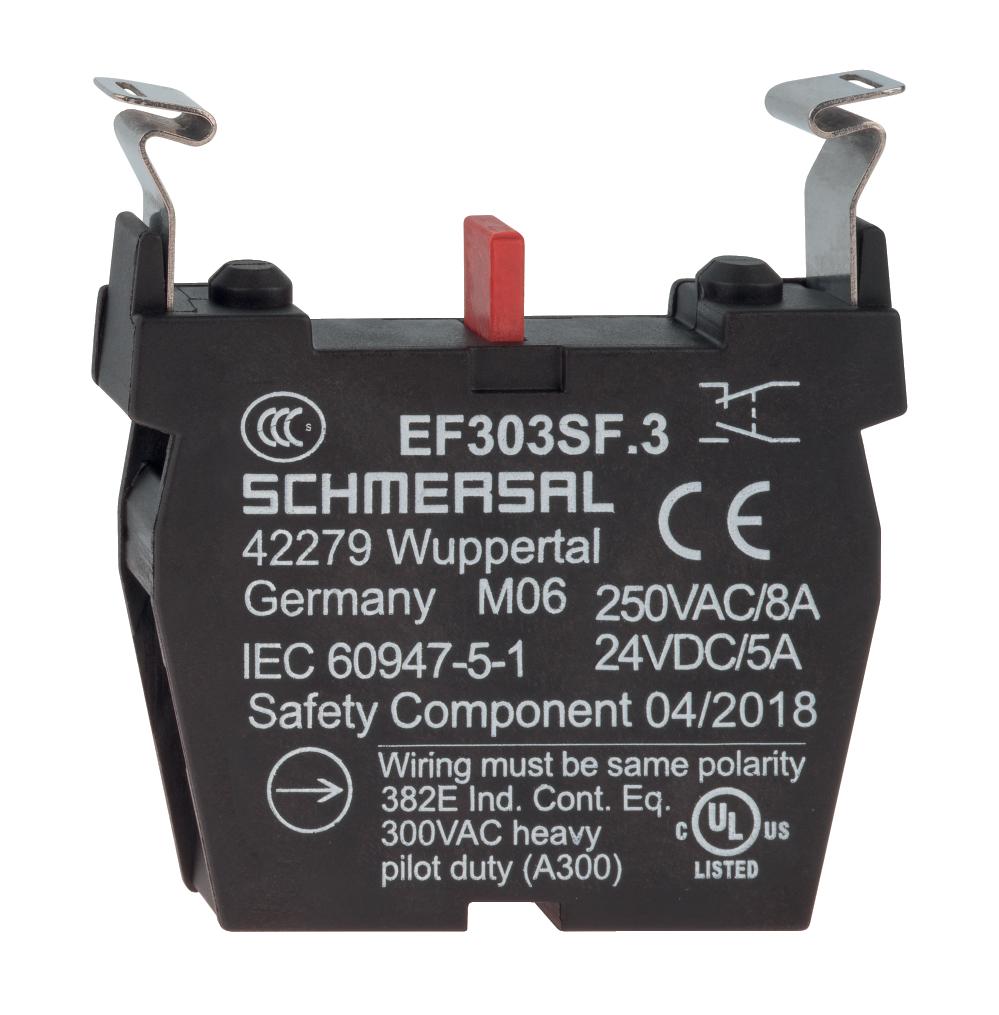

SCHMERSAL CONTACT ELEMENT 1NO+1NC 101006589

Product Code: 101006589

The contact element of this product is 1NO+1NC, with a contact opening of 3 mm and a positive break travel of 2 mm. It can handle up to 8 A at 230 VAC (AC-15) and 5 A at 24 VDC (DC-13). The mounting flange position is 3, and it has a flat plug-in connector measuring 6.3 mm x 0.8 mm or 2 x 2.8 mm x 0.8 mm. The degree of protection is IP40 for switch rooms and IP20 for clips or terminals.

Technical Specifications

Brand SCHMERSAL
Ambient Temperature Range (°C) -25 to 80
Contacts 1NO+1NC
Degree of Protection IP40 (Switch rooms), IP20 (Terminals)
Dimensions (mm) 46L x 10W x 60D
Housing Material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Rated Operational Current AC-15 (A) 8
Rated Operational Current DC-13 (A) 5
Standards and Approvals EN IEC 62061, EN IEC 60947-5-1/-5-3/-5-5, EN IEC 60204-1, EN IEC 60947-1
Rated Insulation Voltage (V) 400
