Specifications

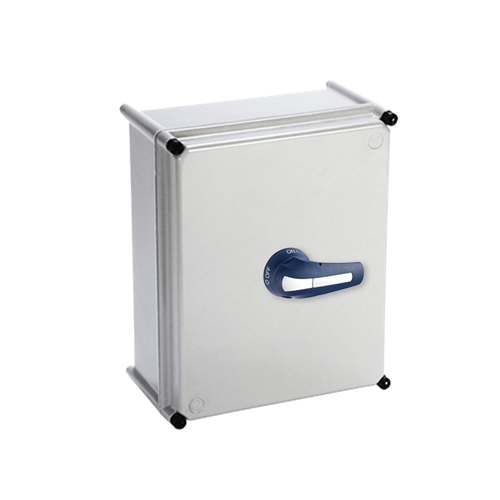

Product Type	Enclosed Changeover Switch
Brand	TELERGON
Application	Mains and Generator Isolators
Cable Cross Section	70 sq-mm
Degree of Protection	IP65
Depth	175 mm
Electrical Durability	1000 Cycles
Height	302 mm
Includes	Load Side Cable Loops
Material	Polycarbonate, Polyester
Mounting Type	1 x Set 4 Polyamide Feet
Number of Poles	4
Rated Current	125 A
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1000 V
Rated Power	69 kW
Rated Voltage	690 VAC
Standards and Approvals	IEC EN 60947.3
Tightening Torque	4 N-m
Weight	6.3 kg
Width	372 mm
