Specifications

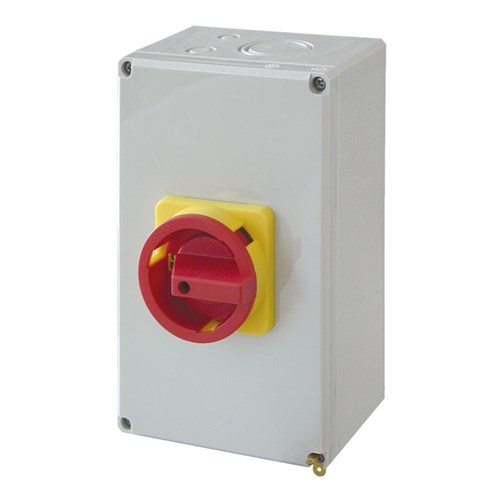

Product Type	Enclosed Load Break Switch
Brand	TELERGON
Series	ZBK
Air Thermal Current	125 A
Cable Cross Section	50 sq-mm
Degree of Protection	IP65
Handle Material	Plastic
Impulse Voltage	6 kV
Includes	Handle
Material	Plastic
Number of Poles	3
Power Loss	8.3 W
Rated Current	125 A
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Power	37 kW
Rated Short Circuit Current	5 kA
Rated Short Time Withstand Current	1.5 kA
Rated Voltage	690 V
Short Circuit Capacity	5 kA
Standards and Approvals	CE, IEC, EAC, UL
