Specifications

Product Type	DC photovoltaic isolator
Brand	TELERGON
Series	ZFV
Application	PV array isolation and DC load-break switching
Rated Impulse Withstand Voltage (Uimp)	8 kV
Power Loss	4 W
Rated Current	32 A
Rated Voltage	1000 V DC (Ui; up to 1500 V DC pollution degree II)
Short Circuit Capacity	1.7 kA
Air Thermal Current	32 A
Cable Entry	4–16 mm² terminal capacity
Mounting Type	Din
Padlockable	Yes; direct-mounted padlockable handle
Tightening Torque	1.7-1.8 N-m
Depth	80 mm
Height	108 mm
Weight	0.4 kg
Width	96 mm
Operating Temperature	-40 to 45 deg C
IP Rating	IP20 terminals
Standards and Approvals	EN60947.3, UL 508 File E332938
Standards	EN/IEC 60947-3; VDE 0660; UL 508 File E332938; GB 14048.3

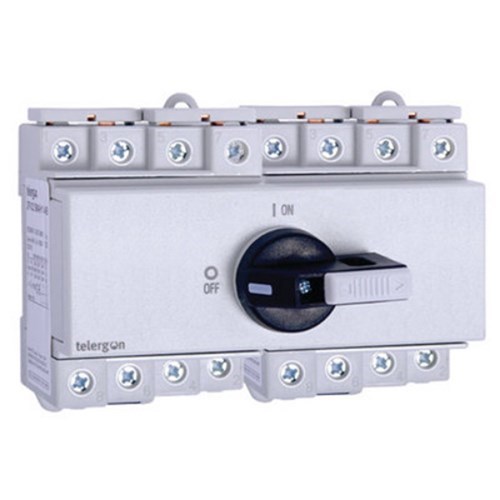

Telergon ZFV32X2 DC Isolator 32 A 1000 V 8-P DIN Mount
