Specifications

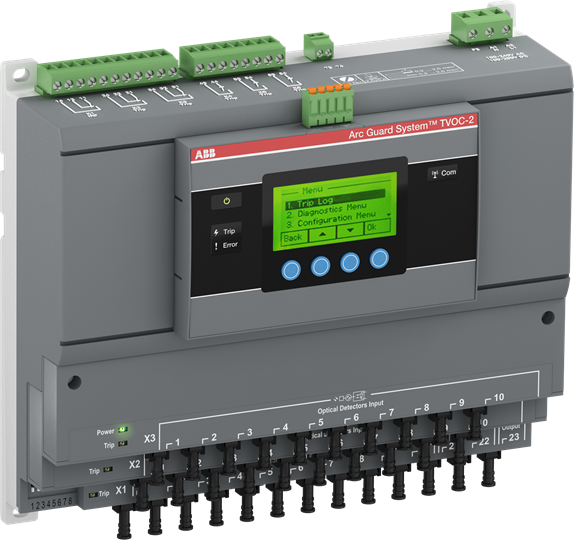

Product Type	Arc Monitor
Brand	ABB
Actuating Voltage Type	AC/DC
Ambient Temperature	-25 to 55 deg C
Connection Type	Screw Terminal
Contact Configuration	3NO
Degree of Protection	IP54
Depth	80 mm
Height	230 mm
Model	Modular
Mounting Type	Wall, DIN
Number of Arc Sensors	30
Number of Change-over Contacts	3
Number of Inputs	12
Number of Trip Outputs	3
Power Loss	1 W
Rated Frequency	50/60 Hz
Rated Voltage	100-240 VAC
Terminal Type	Screw Clamp
Weight	1.2 kg
Width	210 mm
