Specifications

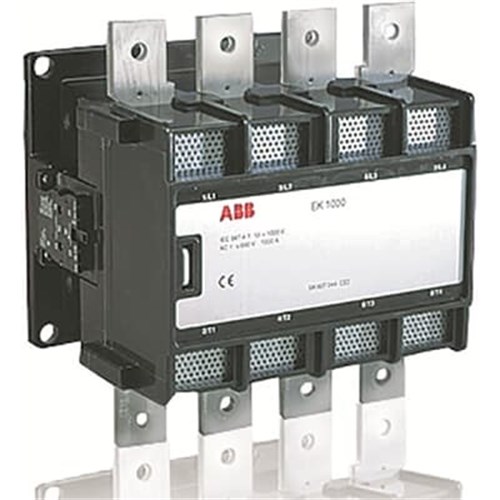

Product Type	4-Pole Contactors
Brand	ABB
No. of Auxiliary Contacts	1NO + 1NC
Rated Control Supply Voltage (Us)	50 Hz 220 ... 230 V60 Hz 230 ... 255 V
Rated Operational Current AC-1 <= 690V (Ie)	1000 A
Rated Operational Current AC-1 1000V (Ie)	1000 A
Rated Frequency	50 / 60 Hz
No. of Poles	4P
Depth	225.5 mm
Height	272 mm
Weight	15.8 kg
Width	270 mm
Ambient Temperatures	-40 ... 70 °C
