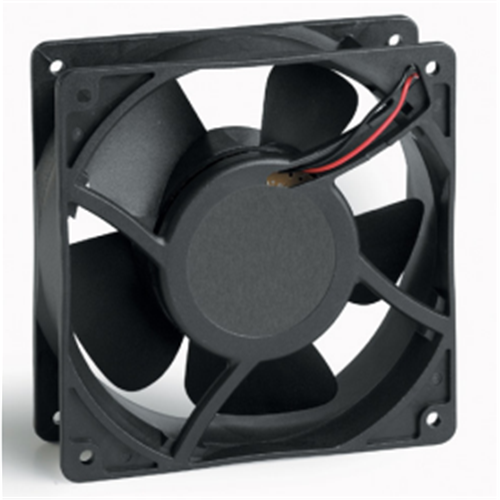

Fandis D08A05HWSA00 Axial Frame Fan 68cu-m/h 7VDC 24VDC IP20 80W 80H Plastic Black

Product Code: D08A05HWSA00

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Axial Frame Fan
Brand FANDIS
Air Flow 68 cu-m/h
Cable Length 0.3 m
Colour Black
Degree of Protection IP20
Depth 25 mm
Height 80 mm
Insulation Class A
Material Plastic
Noise Level 33.4 dBA
Operational Temperature -10 to 70 deg C
Rated Current 0.16 A
Rated Operational Voltage 7 VDC, 24 VDC
Rated Power 3.84 W
Rated Voltage 7 VDC, 24 VDC
Standards and Approvals CE, UR
Width 80 mm

Documents

IPD Product Catalogue V17
FANDIS Datasheet

Certificate

EU Declaration of Conformity
