SCHMERSAL AZM 161-B6 SOLENOID INTERLOCK 101144420

Product Code: 101144420

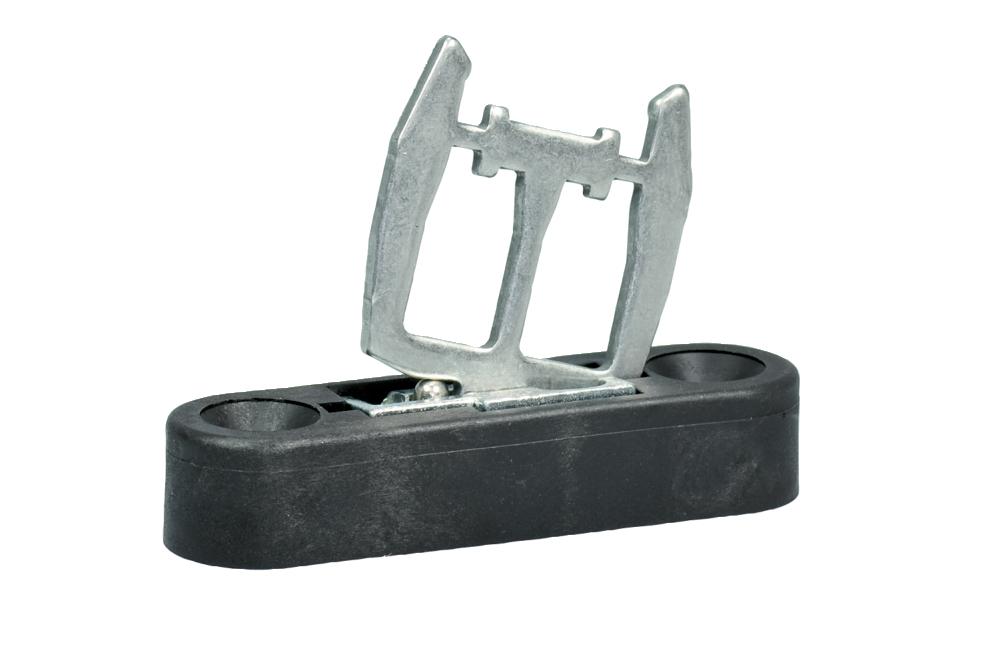

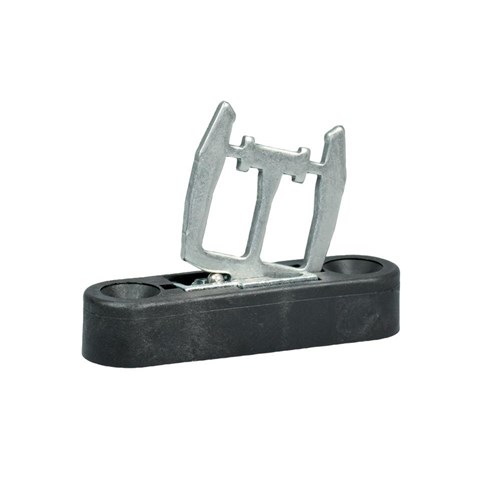

Enhance your machine safety with the Schmersal AZM161 Series solenoid interlocks, featuring a flexible actuator made from durable V2A stainless steel. This robust component is designed to integrate seamlessly into your safety systems, ensuring reliable protection and operation in demanding industrial environments. Trust in Schmersal's commitment to quality and safeguard your machinery with precision-engineered solenoid interlocks.

Technical Specifications

Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 Low
eCl@ss Number, Version 11.0 27-23-02-06
eCl@ss Number, Version 9.0 23-34-03-03
ETIM 6.0 EC002033
ETIM 7.0 EC000223
Gross Weight (g) 50
Housing Construction Form Norm construction design
Maximum Actuating Speed (m/s) 0.5
Maximum Fuse Rating 6 A (slow blow)
Minimum Actuating Speed (mm/min) 1
Minimum Ambient Temperature (°C) 0
Minimum Positive Break Force (N) 20
Net Weight (g) 200
No. of Auxiliary Contacts 1
No. of Safety Contacts 1
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 52
Sensor Length (mm) 46.5
Switching Element NO contact, NC contact
Switching Principle Slow action
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.05 A
Wire Cross-Section 13 AWG
Working Principle Mechanical
Brand SCHMERSAL
Actuator Type Pull strap
Contact Material Silver
Degree of Protection IP67 / IP65
EAN 4030660000000
Enclosure Coating Material Painted
Enclosure Material Grey cast iron, galvanised
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 1 x 1.0 , flexible
Minimum Cable Cross Section (mm²) 2 x 0.75
Minimum Mechanical Life 10000000 Operations
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 400
Series AZM161
Standards EN IEC 60947-5-3 / BG-GS-ET-14
Storage Temperature (°C) -25 to 70
Terminal Type Screw terminals M20 x 1.5
