Specifications

Product Type	Sensor
Brand	Panasonic
Series	FX - 500
Sensing Type	Fiber optic
Type of Switching Output	PNP-Output
Electrical Connection	Cable
Light Source	Red LED (Peak emission wavelength: 643 nm 0.025 mil)
Output Type	PNP
Rated Power	960 mW
Rated Voltage	12-24VDC
Timer Relay Type	OFF-delay, ON-delay, One-shot, ON-delay - OFF-delay, ON-delay - One-shot timer
Housing Material	Polycarbonate Body and Cover
Material	Enclosure, Case cover: Polycarbonate Switch: Polyacetal
Operating Temperature	–10 to +55 ?
IP Rating	IP40(IEC)
Standards and Approvals	CE, RoHS, UL/cUL Recognition

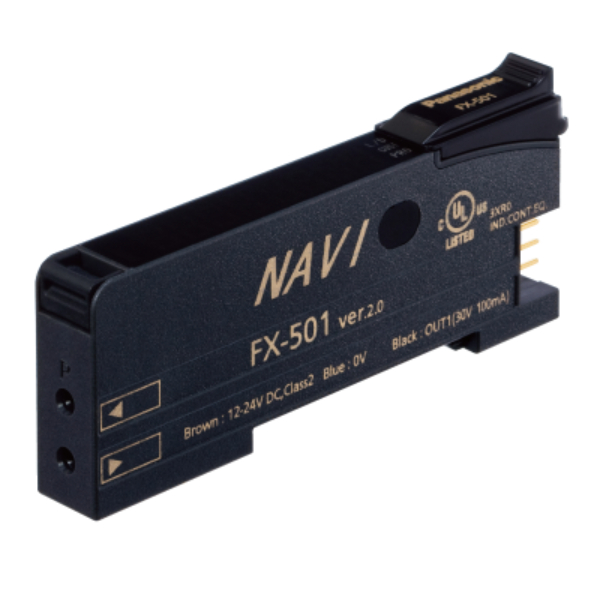

Panasonic FX-501P Digital Fiber Sensor PNP-Output 12-24VDC
