Specifications

Product Type	Clamp split-core CT
Brand	IPD
Series	IPDCSPCT
Application	Perfect for retrofit metering application
Insulation Class (IEC 61869-1, 61869-2)	E
Accuracy Class	1
Max. Operating Voltage	0.72 kV
Rated Primary Current	500 A
Rated Operating Frequency	50 Hz
Rated Secondary Current	1 A
Rated Burden (VA)	5
Current Type	AC
Compatibility	Connects directly to 1A secondary meters
Model	IPDCSPCT32500-1A
Secondary Connection	2.5m 2 x 0.5mm²
Depth	90 mm
Height	96.4 mm
Width	59.2 mm
Inner Diameter	32.5 mm
Storage Temperature	-25°C <T < +70°C
Operating Temperature	-5°C <T < +50°C
Conformity to Standard	DIN EN 61869-1/2

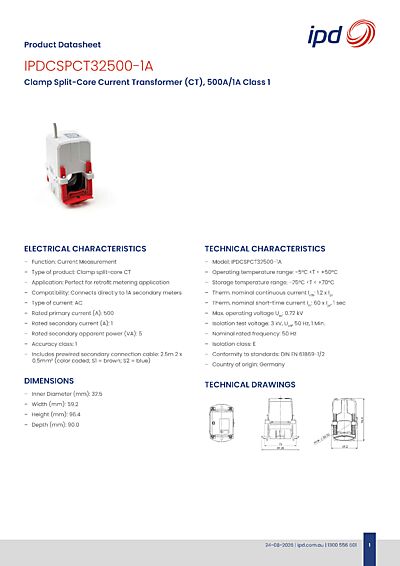

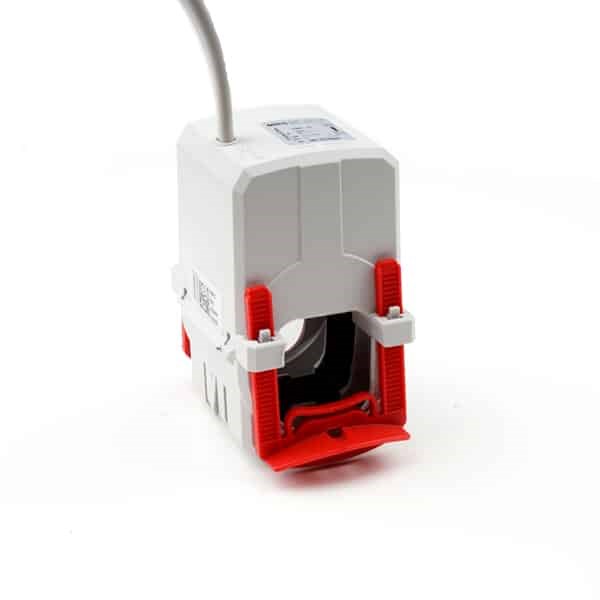

CLAMP SPLIT-CORE CURRENT TRANSFORMER (CT), 500A/1A CLASS 1
