Product Code: R7NF6P

Specifications

Brand	Circutor
Series	AFQm-C
Connection Type	Network: M8 ring terminal, Ground: M10 ring terminal, Current: 6-pole connector, RS-485: 3-pole connector, Ethernet: RJ-45
Max. Phase Current	70 A (RMS)
Nominal Voltage (AC Primary)	208 … 690 V~ F-F (± 10 %)
Earthing System	TN, TT
Rated Frequency	50 / 60 Hz (± 5 %)
Rated Power	66700 VA
Rated Conditional Short-Circuit Current (Inc)	40 kA
ETIM 9.0 Class	EC002758
Installation Category (AC Supply)	4 kV, CAT III Class 1
Rated Peak Current Ipk	84 kA
Current Crest Factor	2:1
Max. Neutral Current	210 A (RMS)
Transformation Ratio	5 … 5000 / 5A
Voltage Harmonics (THD)	25 % (max)
Technology / Type (Serial)	RS-485
Protocol (Serial)	Modbus/RTU
Protocol (Network)	TCP/IP, Modbus TCP
Filtering / Response Time	2º … 50º harmonic (selectable) / < 100 µs
Parallel Assembly / Installation	Up to 100 units, with different gauges. CTs connection only to the "master" unit Advanced management algorithm: Maximizes the life of the devices (alternate operation of devices). Maximises operational efficiency (Only the necessary filters are activated). Allows redundancy (system operation in the event of device malfunction).
Priority Scheduling	Selectable
Phase Compensation	Selectable
Cable Gauge at Current Terminals	2.5 mm²
Cable Gauge at Power Supply Terminals	Grid: Ø 23 mm
Communications Cable Cross-Section	RS-485: 2.5 mm²
Working Temperature	-10 ... +45 ºC
Protection Class	IP 21 (IP 41 on demand) / IK10
Depth	812 mm
Height	1890 mm
Weight	192
Width	608 mm
Electrical Safety, Maximum Height (M)	5000
Technology / Interface	Ethernet
Relative Humidity (Without condensation)	0 ... 95 %
Storage Temperature	-20 ... +50 ºC
Noise (dB)	< 70 dBA
Display Type	TFT color, 3.5" touchscreen
Standards	IEC 61000-6-4, UNE-EN 55011, IEC 61000-6-2, IEC 62477-1, IEC 61439-1
Rated Diversity Factor (RDF), Simultaneity	1
Reactive Power Compensation	Selectable

CIRCUTOR R7NF6P AFQM ACTIVE FILTER 70A 550V 4-WIRE CABINET AFQm-4WP-070C-550

Product Code: R7NF6P

Need full access to stock, pricing, and ordering?

Specifications

Documents

IPD Product Catalogue V17

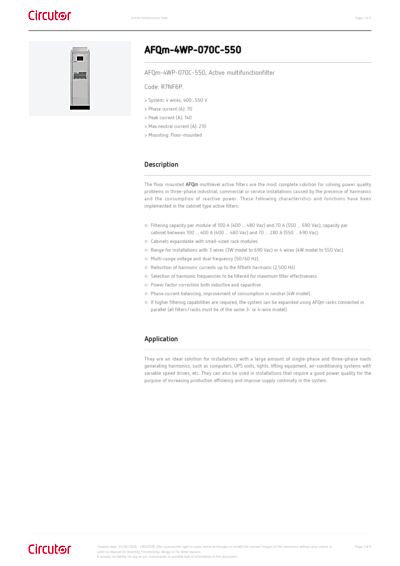

Circutor Datasheet

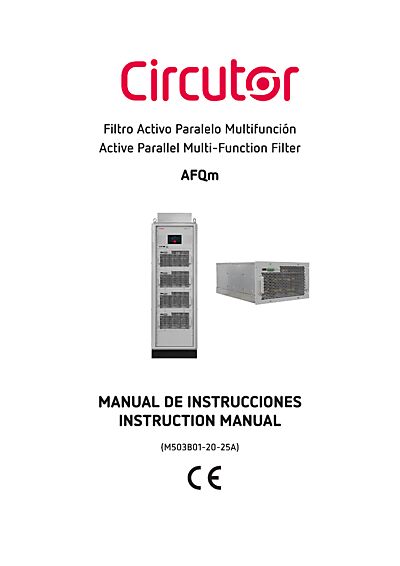

Circutor User Manual
