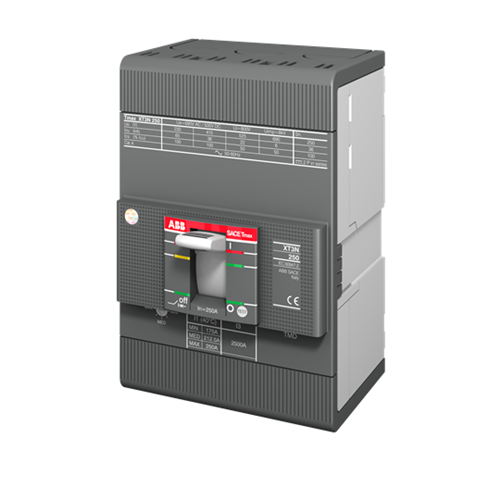

<p>When it comes to selecting the right Molded Case Circuit Breaker (MCCB) for your industrial or commercial needs, understanding the specifics of each component is crucial. This MCCB offers a robust solution with its rated current of 100 A, making it suitable for various applications requiring reliable circuit protection.</p><p>This device can handle both AC and DC systems with a rated voltage capacity of 690 VAC and 500 VDC respectively. The MCCB is designed to withstand high impulse voltages up to 8 kV and has an insulation voltage rating of 800 V, ensuring safety and durability in demanding environments.</p><p>The trip unit type TMD (Thermal Magnetic) provides efficient overload and short-circuit protection. With a breaking capacity of 50 kA, this MCCB is built to manage significant fault levels without compromising system integrity. It operates within a current setting range from 70 A to 100 A, allowing flexibility in various operational contexts.</p><p>For those concerned about energy efficiency, the power loss is minimal at just 5.6 W. The front connection type facilitates straightforward installation and maintenance processes, while the bolt terminal type ensures secure connections that support main circuit connecting capacities ranging from 85 sq-mm to 192 sq-mm.</p><p>In terms of physical specifications, this MCCB features three poles with a compact width of only 105 mm. Despite its compact size, it maintains robust performance standards as per IEC60947-2 approvals. The degree of protection provided by IP20 safeguards against accidental contact with live parts while offering basic protection against dust ingress.</p><p>Weighing in at just 1.7 kg, this MCCB is lightweight yet sturdy enough for industrial use cases. Its compatibility with XT3S further enhances its versatility across different setups or expansions within existing systems.</p><p>Operating efficiently across frequencies of both 50 Hz and 60 Hz makes it adaptable for diverse electrical infrastructures globally. Additionally, the rated short circuit current capacity stands at an impressive level of up to 1000 A—further testament to its reliability under high-stress conditions.</p><p>Overall, this MCCB presents itself as an ideal choice for professionals seeking dependable performance combined with ease-of-use features tailored towards modern electrical installations—balancing advanced functionality with practical application seamlessly within any technical environment.</p>
